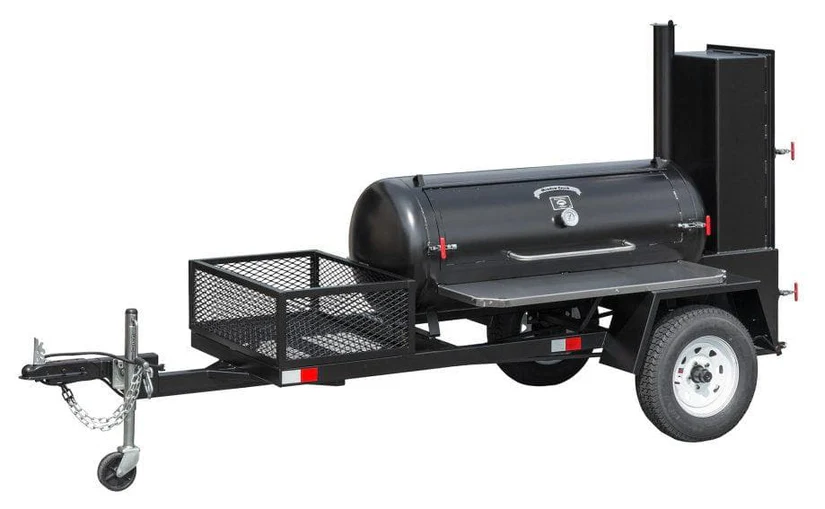

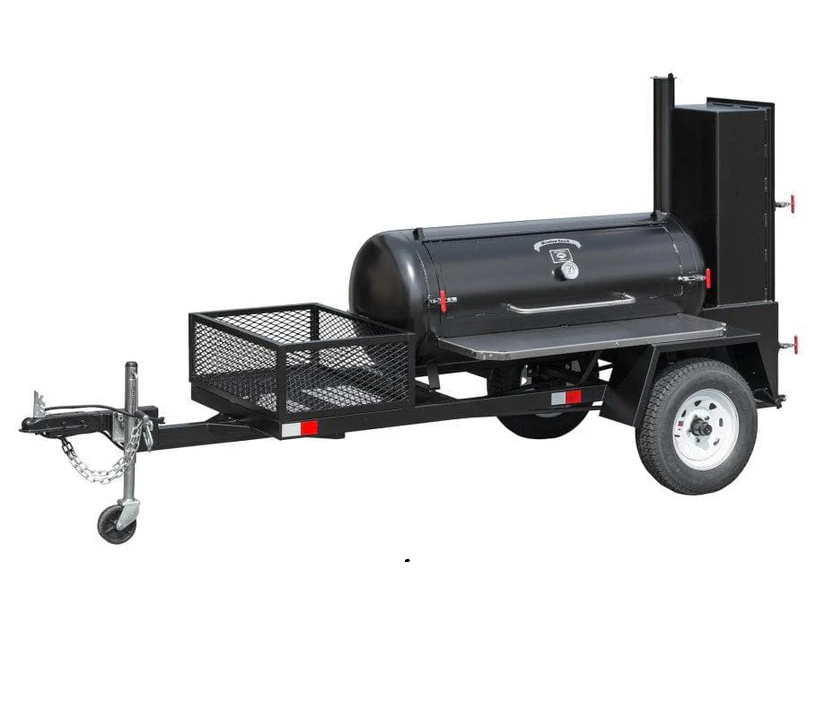

Meadow Creek TS120 120-Gallon Reverse Flow Mobile Smoker Trailer

Description

Professional Catering Performance in a Highly Maneuverable Frame

For catering businesses, civic clubs, and backyard pitmasters looking to make the leap to commercial mobility without towing an oversized rig, the Meadow Creek TS120 Tank Smoker Trailer is the perfect solution.

Handcrafted in Lancaster County, Pennsylvania, the TS120 offers a massive 120-gallon capacity while remaining lightweight enough to be easily towed behind mid-sized trucks and SUVs. Its thick steel barrel construction ensures excellent heat retention, allowing you to lock in consistent, low-and-slow cooking temperatures for 12+ hours—even in windy or cold weather conditions.

Engineered Performance Features

• Uniform Reverse-Flow Draft Technology: Features a solid steel interior baffle plate welded beneath the cooking surface. This plate channels intense firebox heat to the far end of the barrel before reversing its flow across your meats, providing a completely even cook environment from end to end.

• Premium Slide-Out Cooking Racks: Equipped with two levels of food-safe T304 stainless steel grates. The sliding tracks allow you to pull the food completely out of the hot zone for effortless turning, glazing, or temperature probing.

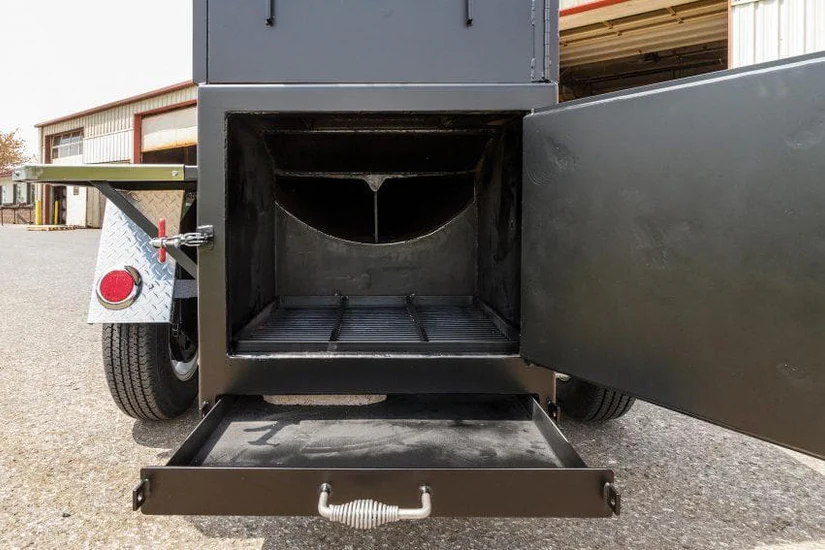

• Heavy-Duty Wood Firebox: The integrated offset firebox is constructed from heavy plate steel and features an adjustable sliding draft door and top-mounted exhaust dampeners for exact oxygen and temperature control.

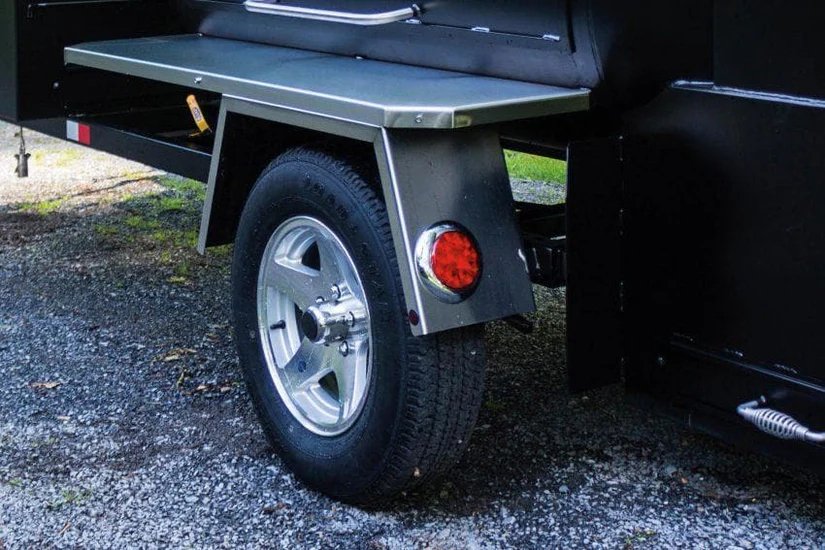

• Road-Legal Trailer Chassis: Built onto a custom-fabricated structural steel trailer frame. Standard equipment includes leaf-spring axles, 13-inch highway tires, safety chains, a top-wind tongue jack, and an integrated wiring harness connecting DOT-approved running/braking lights.

• Integrated Moisture Water Pan: A built-in water pan option allows for high-humidity wood smoking, which aids in preventing lean meats from drying out during extended cook cycles.

• Industrial Finish & Cleanup: Protected by an industrial-grade, heat-resistant matte black paint. The bottom of the main cooking tank is sloped toward a 1-inch drain plug with a brass ball valve for quick grease removal and cleanup.

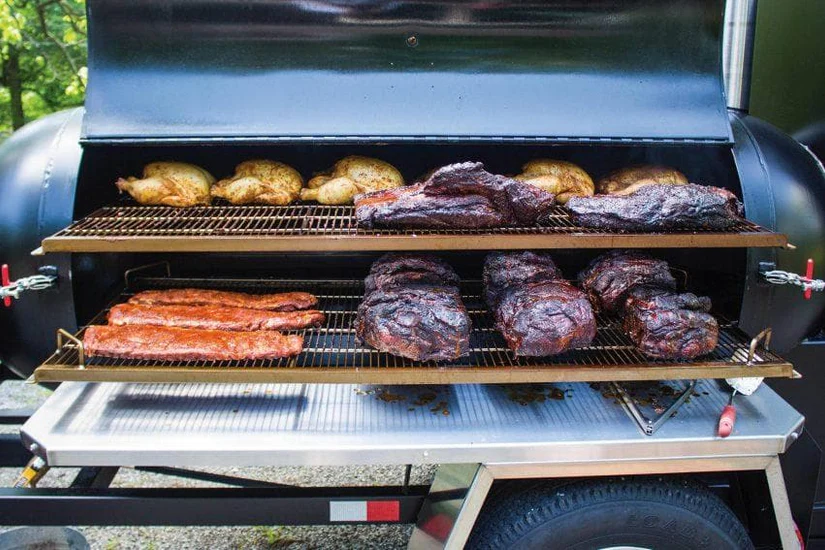

Approximate Batch Cooking Capacity

• Whole Chickens: 25–30 units

• Pork Shoulders / Butts: 16–18 units

• Racks of Baby Back Ribs: 18–22 units

• Beef Briskets: 8–10 units

Technical Specifications

• Tank Dimensions: 24” Diameter x 60” Length (120-Gallon Volume)

• Overall Unit Dimensions: 121” Length x 49” Width x 61” Height

• Total Cooking Surface: 11.25 sq. ft. (1,620 sq. in.)

• Main Cooking Grates: Two slide-out tiers of food-grade stainless steel rods

• Trailer Connection: 2” Standard Ball Coupler with Safety Chains

• Wiring Connection: Standard 4-Way Flat Trailer Plug

• Net Weight: 1,040 lbs.

• Temperature Monitoring: Dual calibrated stainless steel thermometers mounted to the main barrel lids

Complete Customization at Iron Pit Works

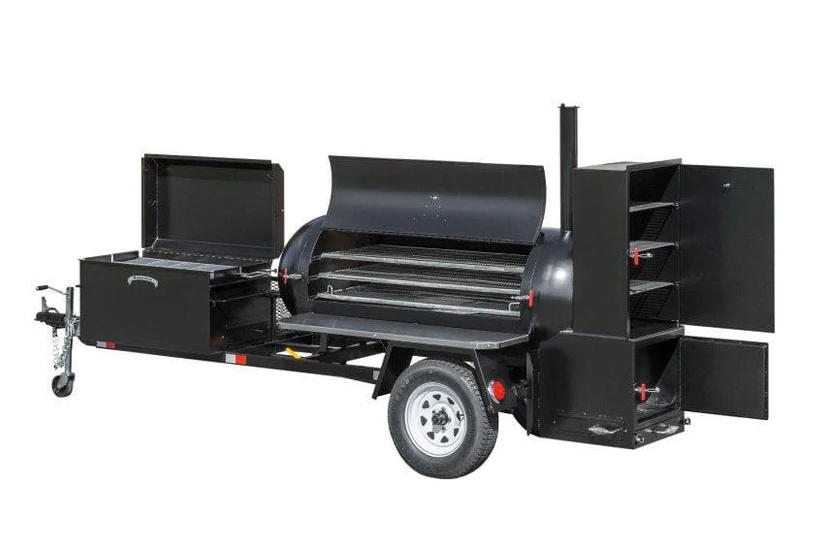

The TS120 is an incredibly versatile platform. The team at Iron Pit Works can help you customize your trailer to match your specific cooking style. Available premium factory upgrades include custom stainless steel storage boxes, insulated firebox jackets to maximize fuel economy, automatic gas-assist burner attachments, or an attached live-fire chicken cooker. Contact our commercial sales desk to verify freight logistics and build schedules.
