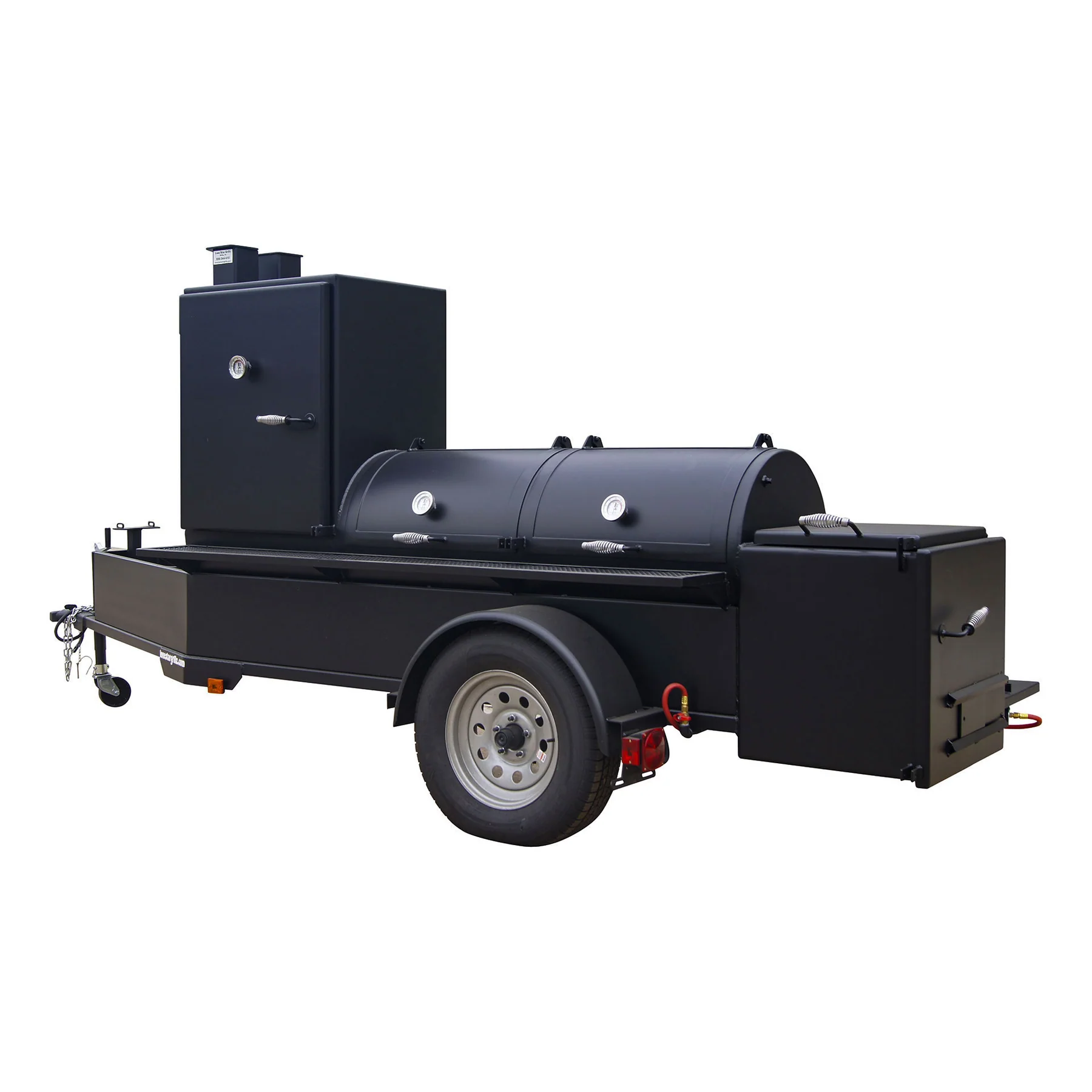

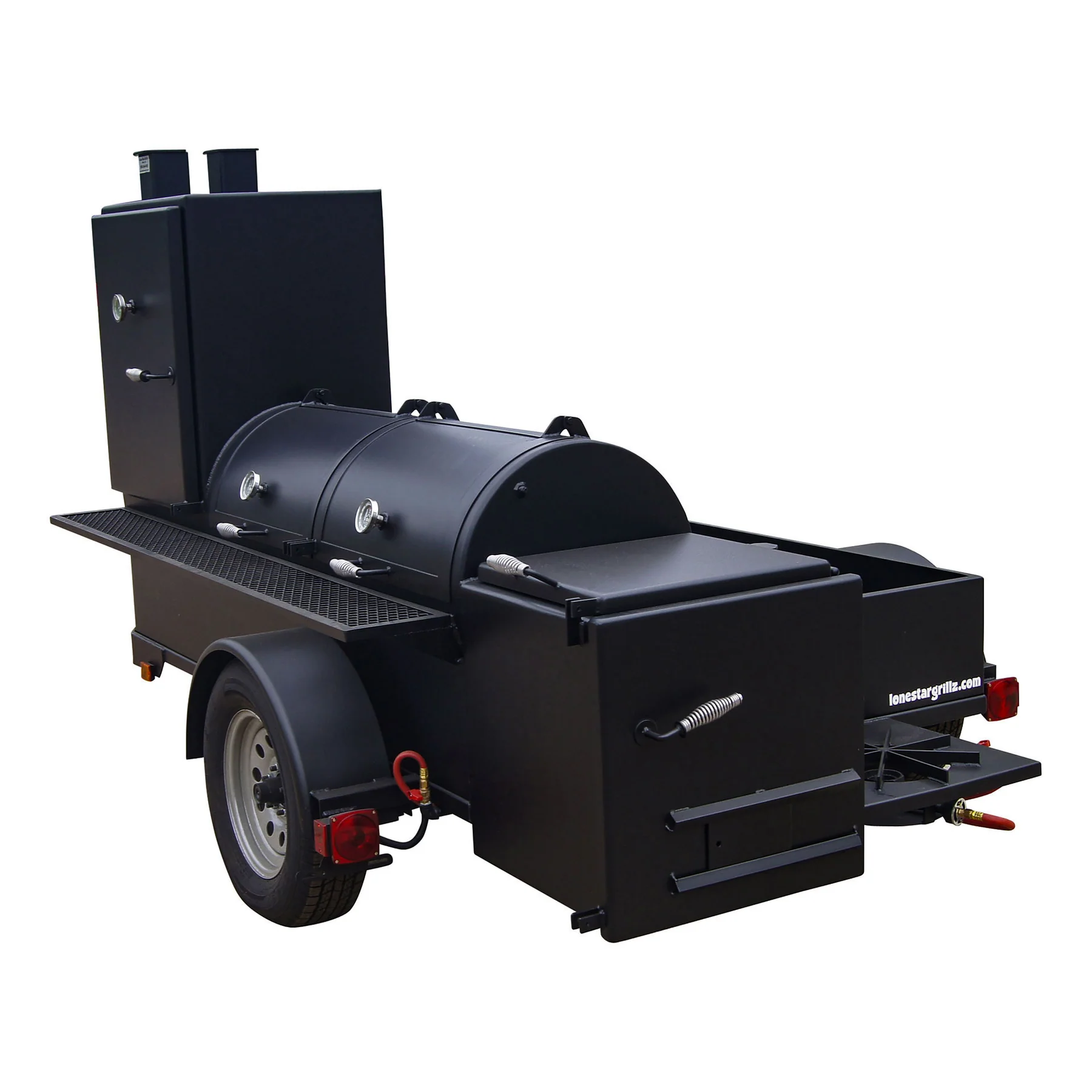

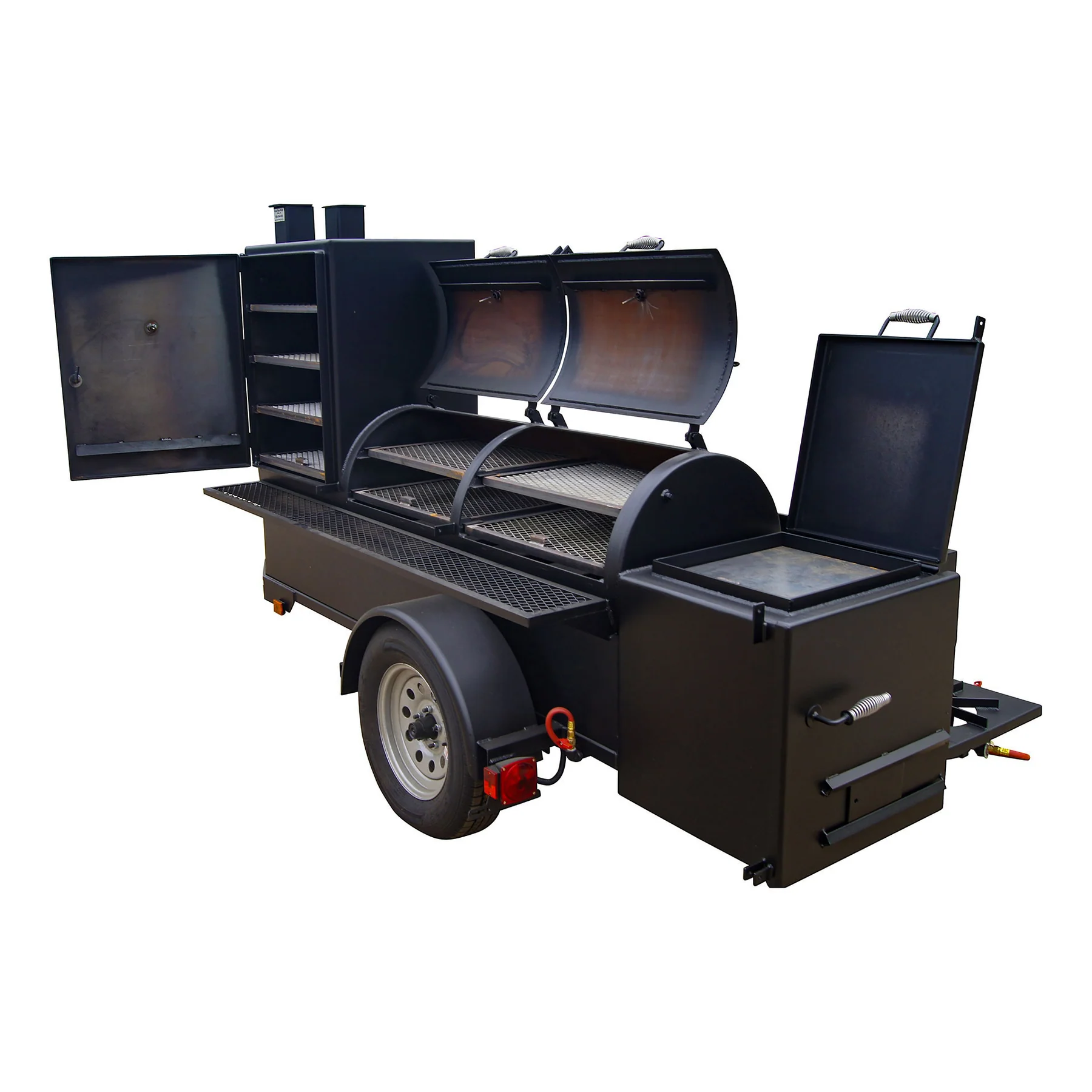

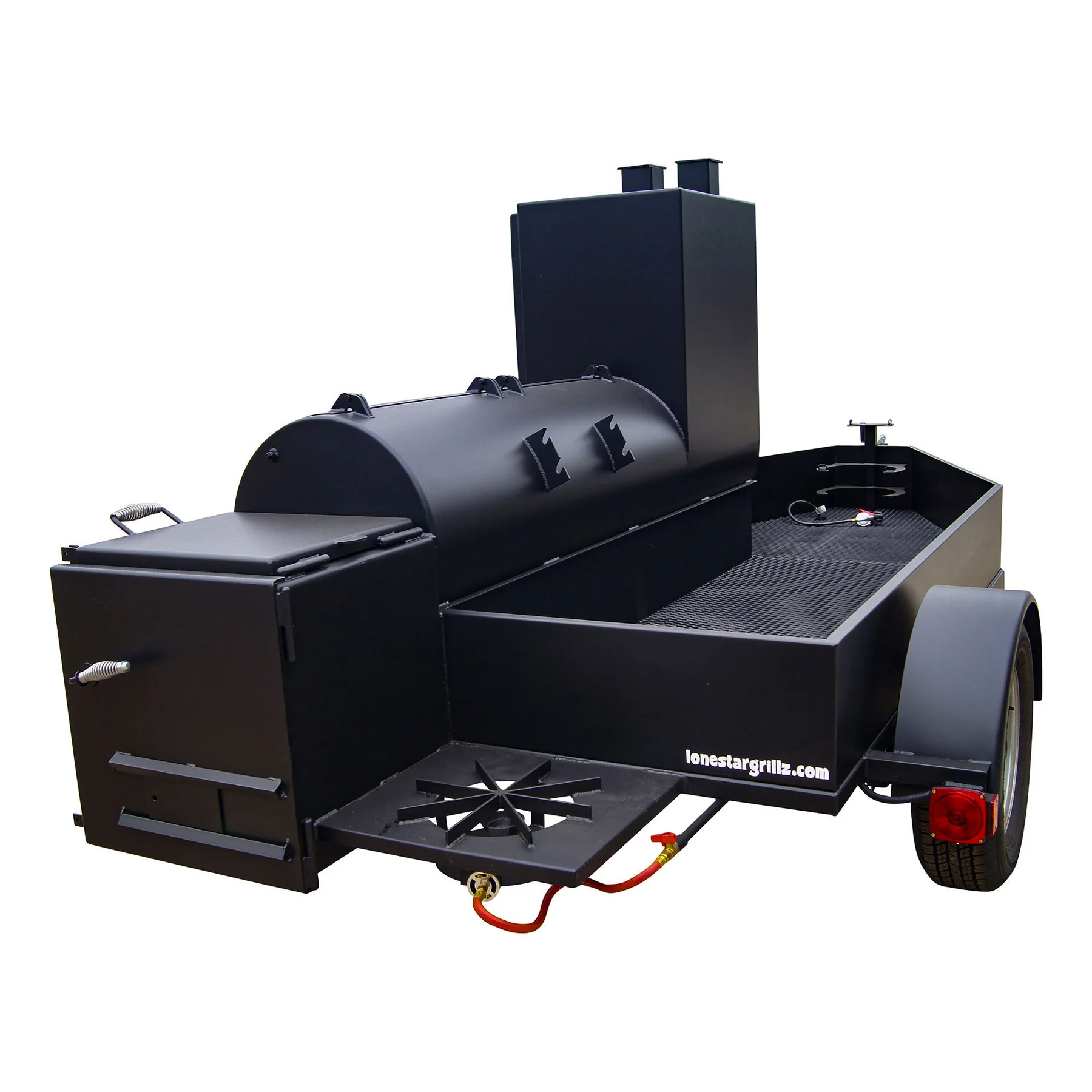

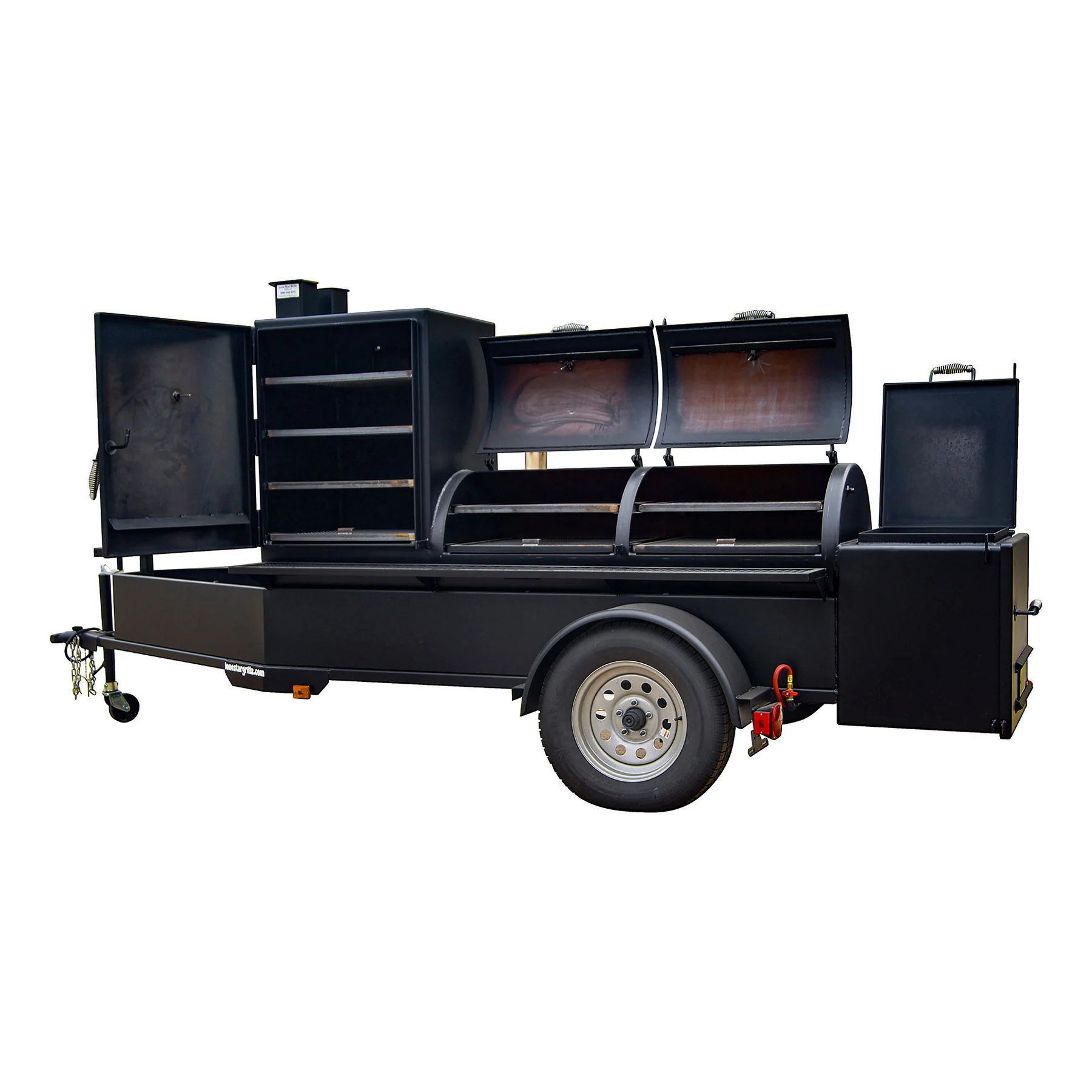

Lone Star Grillz 24×60 Heavy Duty Texas Offset Trailer Pit with Vertical Slow Smoker

Description

The Lone Star Grillz 24×60 Trailer Pit with Vertical Slow Smoker is an elite, multi-stage commercial mobile rig engineered for professional caterers, competition teams, and high-volume pitmasters who need to serve massive crowds on the move. Handcrafted in Texas from massive, brand-new 0.25-inch thick structural wall pipe and heavy plate steel, this monumental mobile pit possesses extreme thermal mass. It functions as a natural heat battery, locking in your cooking environment to easily slice through highway wind, rain, and changing outdoor humidity while burning fuel at peak efficiency.

This ultimate setup combines a 60-inch horizontal main barrel with an integrated vertical slow-smoking cabinet to deliver three distinct temperature zones across a single footprint. Run your packer briskets low-and-slow in the primary horizontal chamber, hang custom sausage or smoke chicken in the vertical cabinet using residual heat, and utilize the square firebox’s integrated sliding grate to direct-heat grill or reverse-sear steaks directly over active coals. Equipped with adjustable, lockable tuning plates and an integrated steel heat deflector, this pit allows you to calibrate and maintain perfect temperature consistency across the entire rig. The main horizontal barrel is also engineered to hold several gallons of water, generating a high-moisture steaming environment that deeply tenderizes meats during grueling, overnight cooks.

Every element is built for rigorous highway travel and heavy-duty operation. The trailer is custom-framed with heavy-duty 2″ x 2″ x 1/4″ structural square tubing and features a 3,500 lbs axle, standard trailer coupler, a large rear storage mesh basket for wood or coolers, and hidden frame wiring with a complete light kit. The dual-door main chamber features fully flanged doors with counterweights for effortless opening, and a heavy mechanical lock-down system to ensure everything remains tightly sealed while traveling at highway speeds. Outfitted with a propane log starter and a built-in low-pressure utility burner, this premium mobile rig is distributed by Iron Pit Works for pitmasters who want a mobile kitchen capable of dominating any barbecue event.

Overall Dimensions:

180″ length x 82″ width x 78″ height

1/4″ thick wall pipe

Double Door Main Chamber Dimensions:

24″ diameter x 60″ length

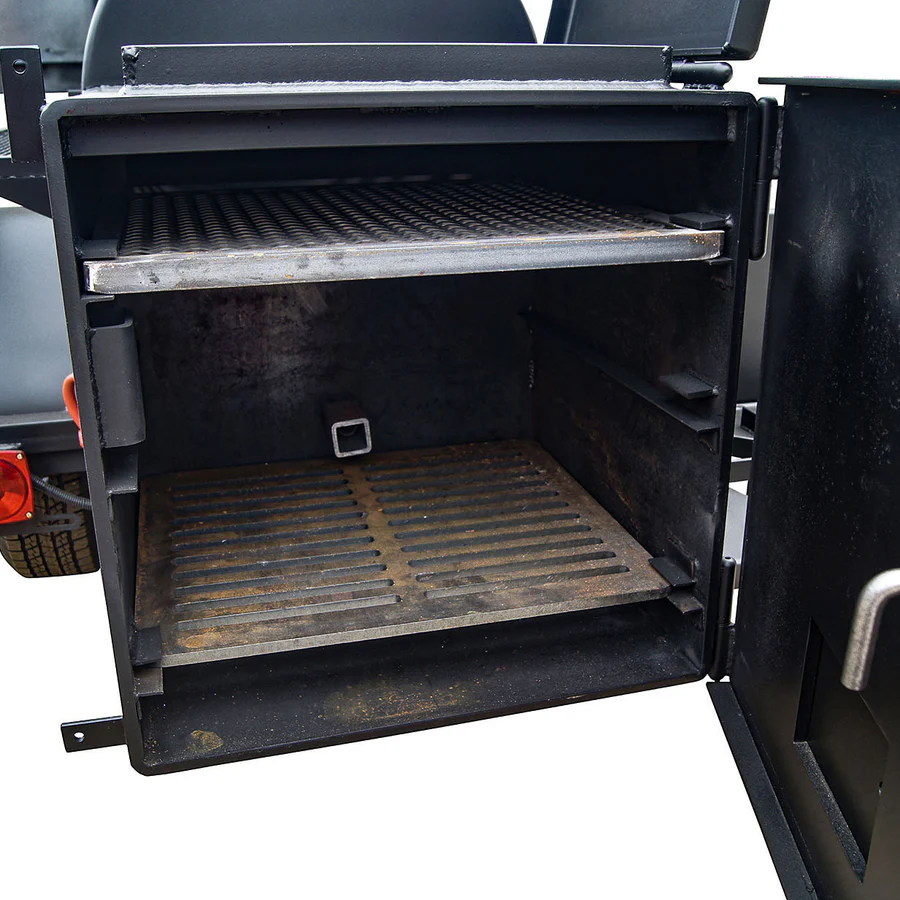

Square Fire Box Dimensions:

24″ x 24″ x 22″

Product Details:

• 4 sliding/pull-out 1″ food trays framed with angle in the main chamber
• One 22″ x 22″ sliding/pull-out food tray framed with angle in the fire box (adjustable)
• Fully flanged double doors to keep your heat inside main chamber
• 1 heavy-duty slide out wood/charcoal grate, double flanged grill top door with sliding adjustable pull-out food grate for grilling
• Heat deflector
• Lockable, adjustable tuning plates to keep the temperature even from one side to the other
• 2 Tel-Tru stainless steel temperature gauges
• Stainless steel cool-touch handles
• 2 15″ painted wheels
• 1 1/4″ drain with steel cap
• Fire box includes propane log starter

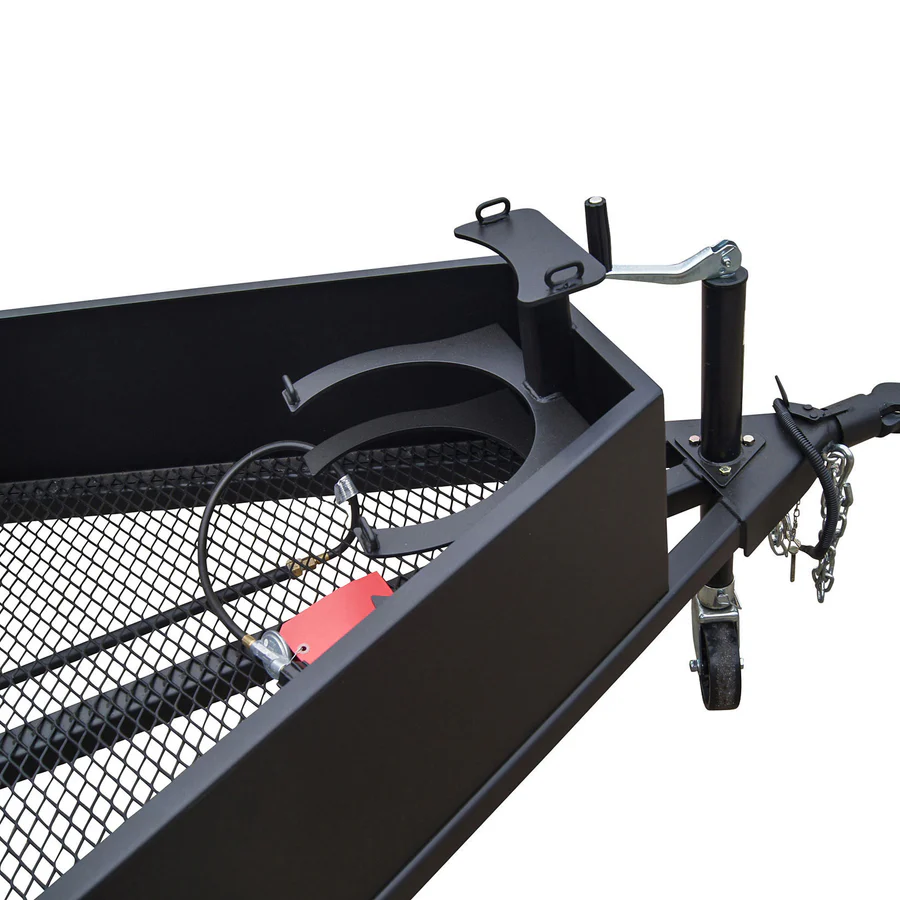

• Lockable propane tank holder
• Painted with three coats of high heat paint
• Double adjustable 5″ smoke stacks
• Total cooking area 4800 sq/in.
• 10″x 84″ front framed prep table
• 36″ x 84″ x 12″ tall rear storage for your wood, ice chest, or anything you want and extending all the way to the front of the trailer
• 3500 lbs axle
• 2″ bulldog style trailer coupler
• Custom trailer framed in 2″ x 2″ x 1/4″ thick square tubing and welded construction
• Complete with all wiring (completely hidden inside frame) and light kit
• 1 propane low pressure burner
• Painted black
• Optional Santa Maria dimensions are:Grate dimensions are 30.5” x 26.25” for the 36” model, 42.5” x 26.25” for the 48” model, 54.5” x 26.25” for the 60” model, 66.5” x 26.25” for the 72” model & the outside grill dimensions are 34.25” x 29.25” for the 36” model, 46.25” x 29.25” for the 48” model, 58.25” x 29.25” for the 60” model, 70.25” x 29.25” for the 72” model
• Optional Storage Box dimensions are: 34.25” x 30.25” x 23.25” for the 36” model, 46.25” x 30.25” x 23.25” for the 48” model, 58.25” x 30.25” x 23.25 for the 60” model, 70.25” x 30.25” x 23.25” for the 72” model
