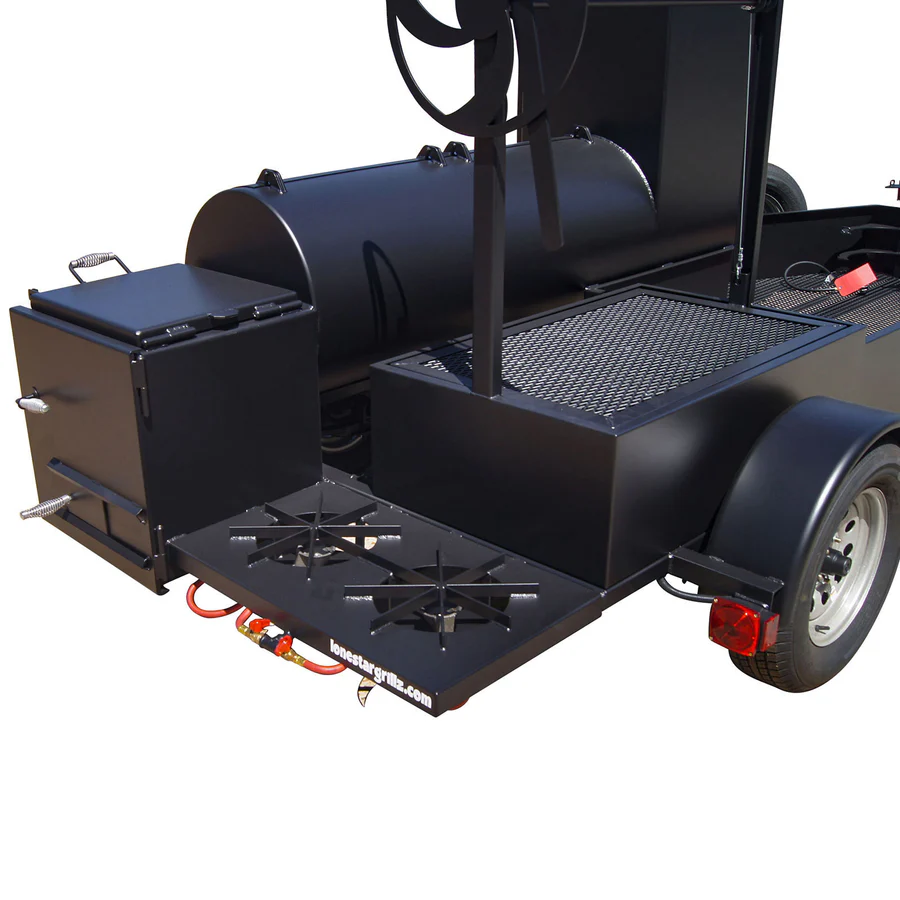

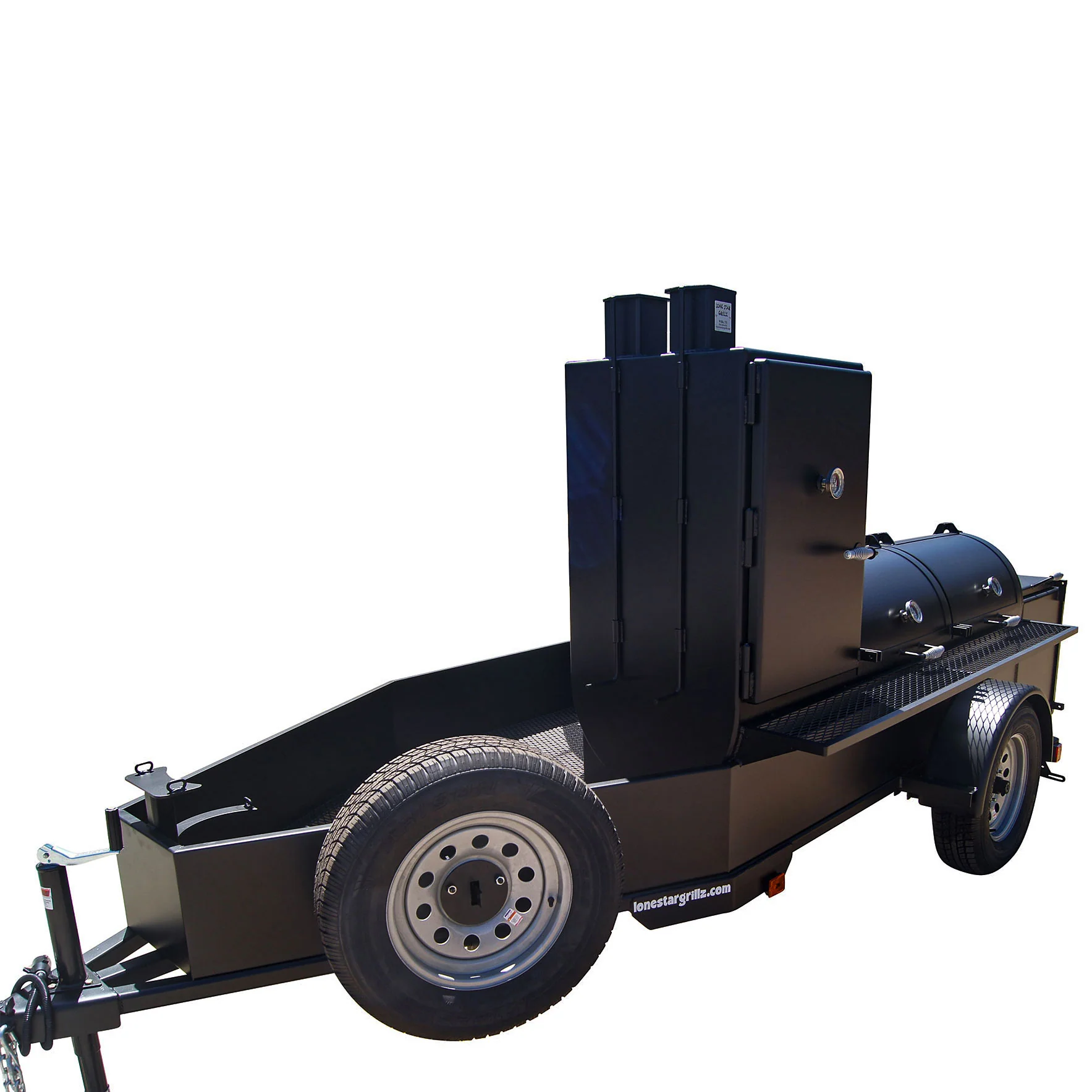

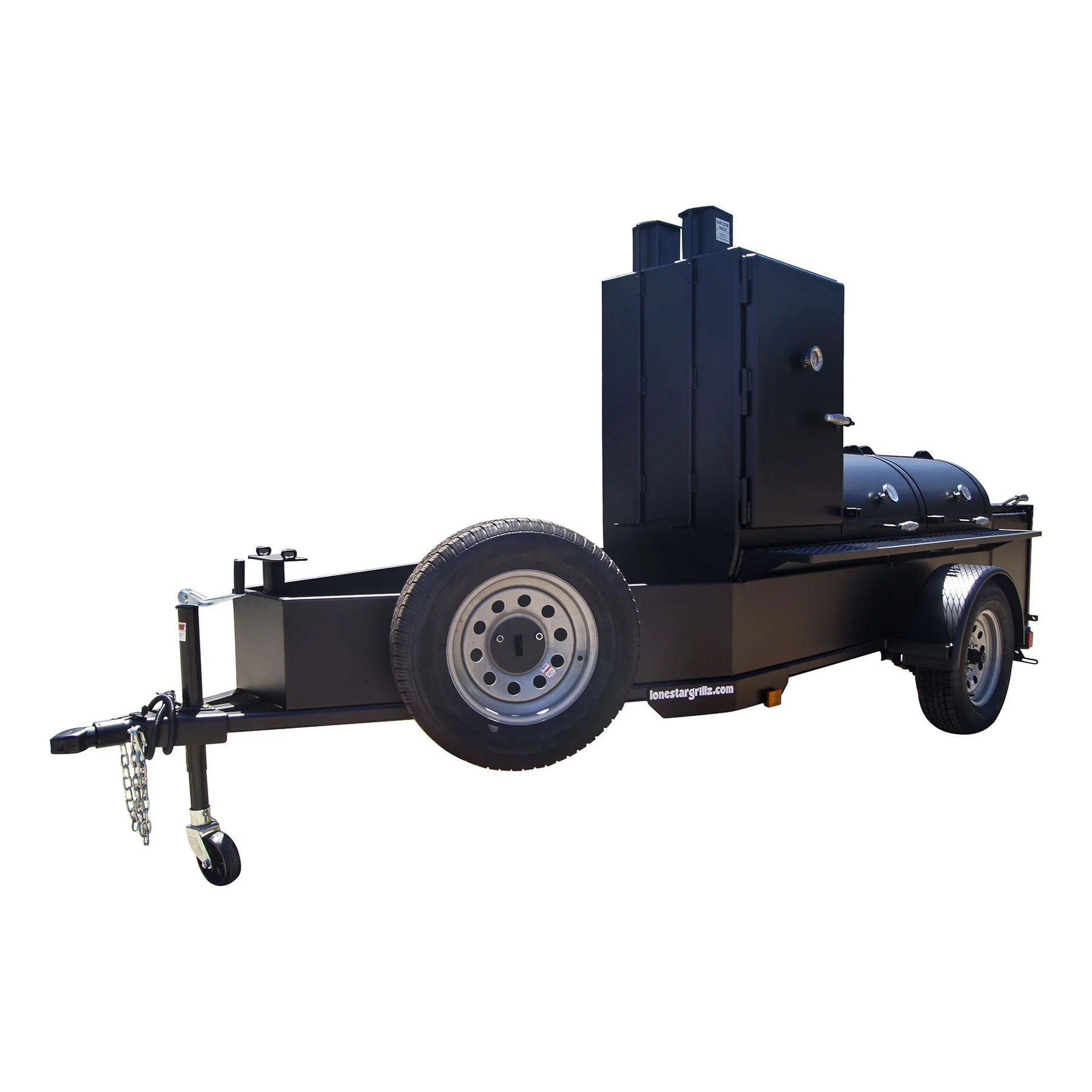

Lone Star Grillz 24×72 Heavy Duty Texas Offset Trailer Pit with Vertical Slow Smoker

Description

The Lone Star Grillz 24×72 Trailer Pit with Vertical Slow Smoker is an elite, ultra-high-capacity mobile live-fire rig handcrafted in Texas for professional caterers, commercial concessionaires, and elite competitive cooking teams who need to conquer large-scale crowds. Constructed from brand-new, massive 0.25-inch thick structural wall pipe and heavy plate steel, this monumental trailer rig packs incredible thermal mass. Operating as an unshakeable mobile heat battery, it completely insulates your internal cooking climate from brutal highway winds, heavy downpours, and changing outdoor humidity, delivering absolute temperature stability while burning fuel at peak efficiency.

The masterfully engineered design expands upon traditional offset limits by integrating an upright, multi-tier smoking cabinet directly onto the end of an oversized 72-inch horizontal main barrel. This configuration harnesses natural convection to pull clean, sweet woodsmoke through three separate, independent temperature zones simultaneously. Run your packer briskets low-and-slow in the horizontal cylinder, hang high volumes of custom sausage links or slow-smoke chicken in the vertical cabinet, and direct-heat grill or reverse-sear steaks inside the square firebox on its built-in sliding grate. Backed by adjustable, lockable interior tuning plates and an integrated steel heat deflector, you can fine-tune the drafting flow to eliminate hot spots completely. For maximum moisture retention during punishing, multi-day cooks, the horizontal main chamber basin holds several gallons of water to create an active, pressurized steaming environment that keeps meat exceptionally tender.

Built to handle thousands of highway miles and grueling road use, the custom chassis is framed with heavy-duty 2″ x 2″ x 1/4″ structural square tubing and utilizes a rugged 3,500 lbs axle, standard trailer coupler, a large rear storage mesh basket for wood or gear, and hidden frame wiring paired with a full light kit. The primary double doors are integrated with heavy steel counterweights for effortless, one-handed opening and feature an industrial mechanical lock-down system to ensure everything stays perfectly sealed while traveling at highway speeds. Outfitted with an integrated propane log starter to build a clean coal bed instantly and a built-in low-pressure utility burner for side-sauce prep, this premium trailer pit is distributed by Iron Pit Works for pitmasters who want an absolute commercial weapon on wheels.

Overall Dimensions:

192″ length x 82″ width x 78″ height

1/4″ thick wall pipe

Double Door Main Chamber Dimensions:

24″ diameter x 72″ length

Square Fire Box Dimensions:

24″ x 24″ x 22″

Product Details:

• 4 sliding/pull-out 1″ food trays framed with angle in the main chamber
• One 22″ x 22″ sliding/pull-out food tray framed with angle in the fire box (adjustable)
• Fully flanged double doors to keep your heat inside main chamber
• 1 heavy-duty slide out wood/charcoal grate, double flanged grill top door with sliding adjustable pull-out food grate for grilling
• Heat deflector
• Lockable, adjustable tuning plates to keep the temperature even from one side to the other
• 3 Tel-Tru stainless steel temperature gauges
• Stainless steel cool-touch handles
• 2 15″ painted wheels
• 1 1/4″ drain with steel cap
• Fire box includes propane log starter
• Lockable propane tank holder
• Painted with three coats of high heat paint
• Double adjustable 5″ smoke stacks
• Total cooking area 5200 sq/in.
• 10″x 96″ front framed prep table
• 36″ x 96″ x 12″ tall rear storage for your wood, ice chest, or anything you want and extending all the way to the front of the trailer
• 3500 lbs axle
• 2″ bulldog style trailer coupler
• Custom trailer framed in 2″ x 2″ x 1/4″ thick square tubing and welded construction
• Complete with all wiring (completely hidden inside frame) and light kit
• 1 propane low pressure burner
• Painted black

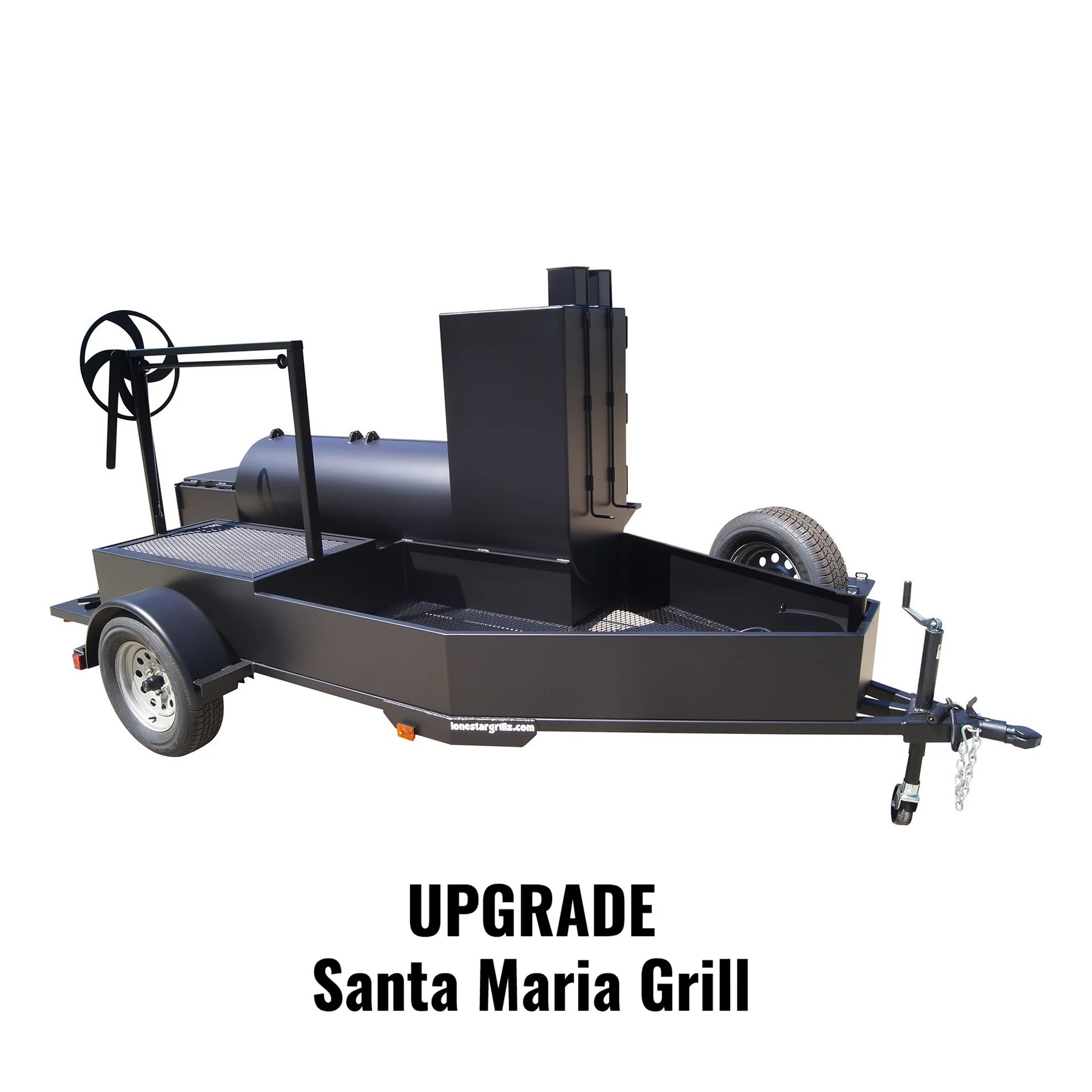

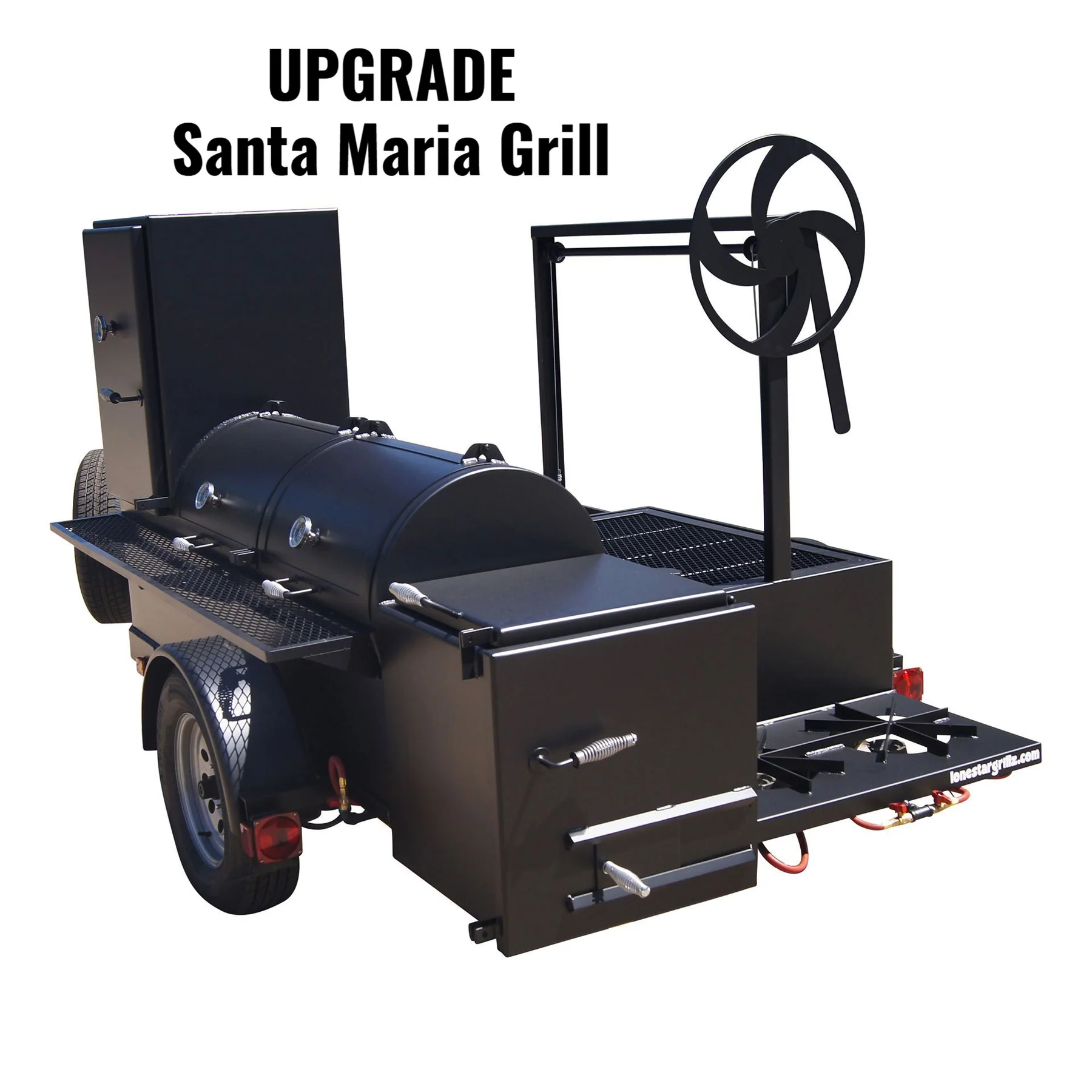

• Optional Santa Maria dimensions are:Grate dimensions are 30.5” x 26.25” for the 36” model, 42.5” x 26.25” for the 48” model, 54.5” x 26.25” for the 60” model, 66.5” x 26.25” for the 72” model & the outside grill dimensions are 34.25” x 29.25” for the 36” model, 46.25” x 29.25” for the 48” model, 58.25” x 29.25” for the 60” model, 70.25” x 29.25” for the 72” model
• Optional Storage Box dimensions are: 34.25” x 30.25” x 23.25” for the 36” model, 46.25” x 30.25” x 23.25” for the 48” model, 58.25” x 30.25” x 23.25 for the 60” model, 70.25” x 30.25” x 23.25” for the 72” model

The main chamber can hold several gallons of water for steaming and keeping your food moist while smoking, also makes it nice for clean out once you’re finished cooking.
