Lone Star Grillz Large Insulated Vertical Cabinet Smoker with Double Wall Insulation

Description

Commercial Smoking Capacity. Ultimate Fuel Efficiency.

The Lone Star Grillz Large Insulated Cabinet Smoker is built for pitmasters whose cooking demands have outgrown standard backyard pits. Weighing in at a massive 825 pounds, this industrial vertical smokehouse maximizes vertical space to give you the cooking volume of a massive offset trailer within a highly compact patio footprint.

The secret to this smoker’s legendary performance lies in its double-wall thermal insulation. By enclosing 2,000-degree high-density insulation between sheets of heavy 11-gauge structural steel, Lone Star Grillz has created a vertical cabinet that acts as a natural heat battery. The external environment cannot affect your cook whether you are competing in a freezing winter blizzard or cooking under direct summer sunlight, your internal temperatures stay perfectly locked where you set them, while pellet or charcoal fuel consumption drops dramatically compared to uninsulated units.

Intelligent Airflow and Smart Controller Compatibility

The Large Cabinet is designed to pull clean, sweet woodsmoke evenly across all cooking levels, completely eliminating hot spots or stagnant pockets. Its heavy-duty firebox basket features a precision 2-inch brass ball valve air intake, making it instantly compatible with popular digital draft controllers like the FireBoard or BBQ Guru systems for complete automated temperature control.

To maintain an incredibly moist cooking climate over 16-hour brisket sessions, the unit features an internal 5-gallon water pan fabricated from thick plate steel. Best of all, you never have to break the main door seal to top off your liquids, an integrated external fill port allows you to add water, juice, or vinegar safely from the outside, keeping 100% of your heat and smoke locked inside the cabinet where it belongs.

Cooking Surface & Spatial Capacity

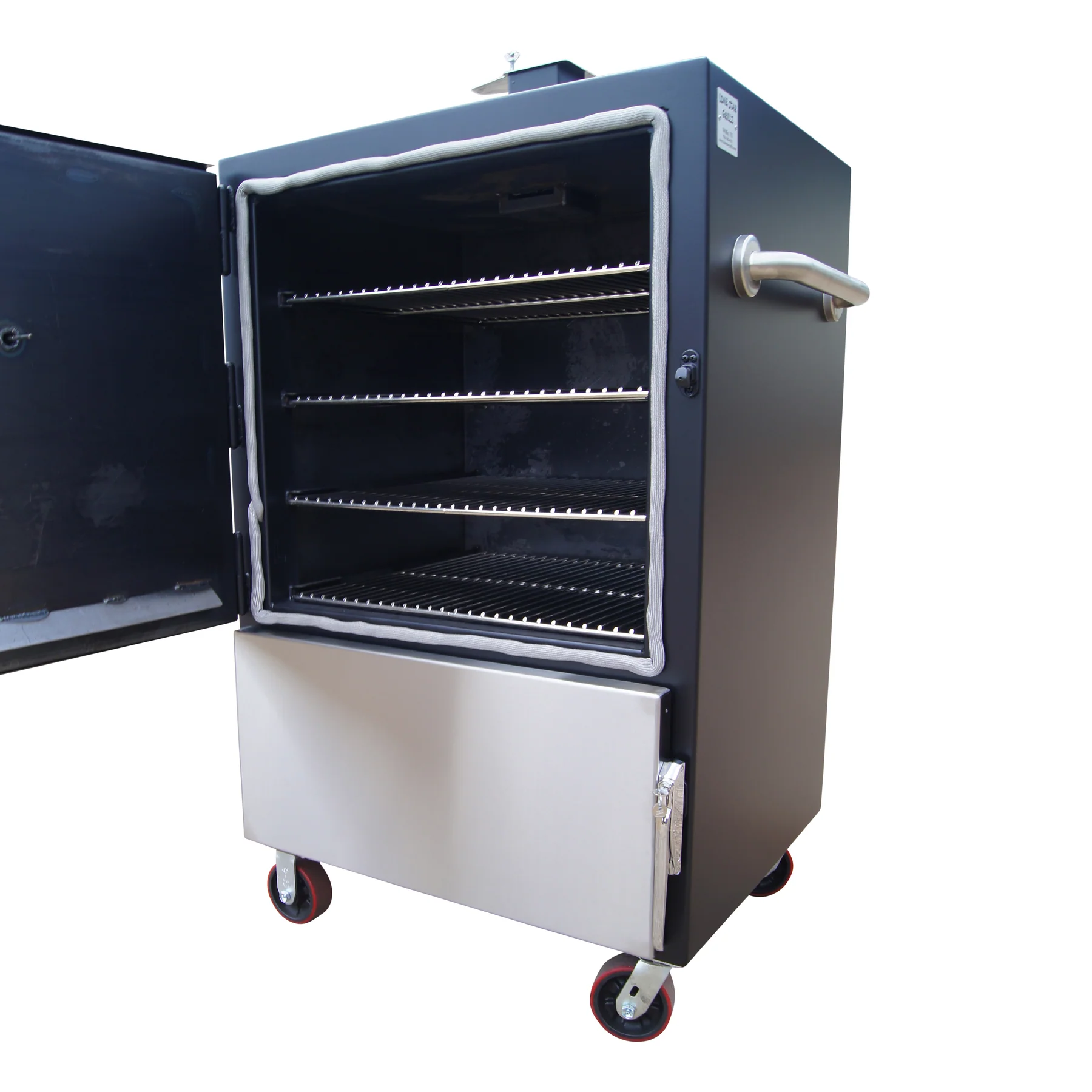

• Total Cooking Space: 2,915 square inches across five nickel-plated sliding grates.

• Grate Dimensions: 23 inches x 25.3 inches each (with a generous 6.75-inch height clearance between shelves).

• Batch Capacity Example:

  • Beef Briskets: 8 large packer briskets lying flat

  • Pork Shoulders / Butts: 20 to 24 large shoulders

  • Racks of Ribs: 25 to 30 full slab racks

  • Whole Chickens: 25 to 30 whole birds split evenly

Technical Specifications

• Cabinet Construction: Dual-wall 11-gauge steel shell with 2,000-degree high-density insulation

• Door Assemblies: 14-gauge stainless steel wrapped doors with high-temp commercial gaskets and heavy-duty slam latches

• Water Pan Capacity: 5-gallon capacity with external top-fill plumbing

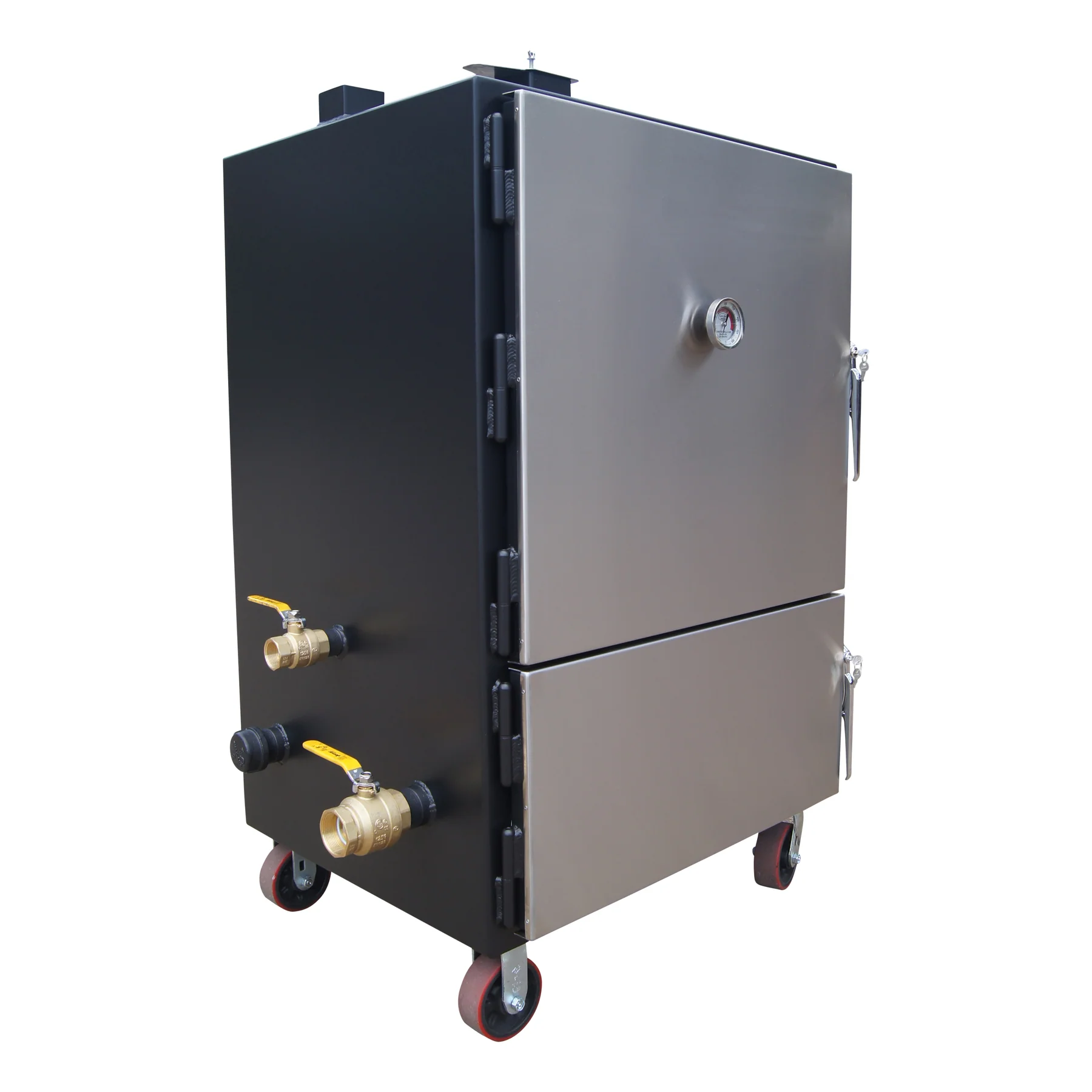

• Drain Valve: 1.25-inch bottom drain fitted with a brass ball valve for clean grease management

• Temperature Operational Range: Safe operating temps between 180 and 400 degrees Fahrenheit

• Chassis Wheels: Heavy-duty 5-inch industrial wheels (two locking, two swivel casters)

• Overall Dimensions: 30″ length x 34″ width x 62″ tall

• Total Weight: Approx. 825 lbs.

Expand Your Capabilities with Iron Pit Works

The Lone Star Grillz Large Insulated Cabinet Smoker is a serious commercial asset built to last a lifetime. At Iron Pit Works, we source directly from the manufacturer to supply this heavy-duty smoker on both a retail and wholesale basis. Order online from the comfort of your home and let our dedicated freight team deliver this heavy-duty unit directly to your doorstep. Contact our customer support team today to confirm real-time stock availability, custom color options, or freight delivery quotes.
